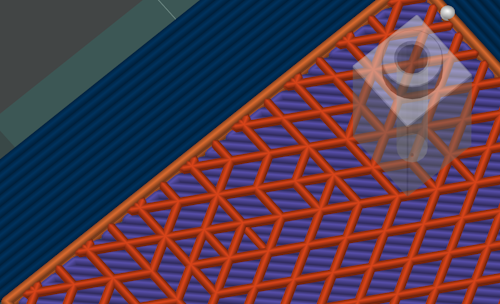

The Magma 3D printing system utilizes molten plastic injection to overcome Z-axis weaknesses. (Illustrative AI-generated image).
At a Glance
Magma is an experimental modification of the OrcaSlicer software designed to address a major weakness in FDM 3D printing: the Z-axis strength. It works by creating narrow, vertical channels within a print and then injecting molten plastic into these channels mid-print, effectively knitting the layers together and creating a much stronger part.
- FDM 3D prints are inherently weak along the Z-axis due to poor layer adhesion, making them prone to breaking.
- Magma is a slicer modification that creates internal channels and injects molten plastic mid-print to fuse layers.
- This technique aims to significantly improve the Z-axis strength of 3D printed parts.
- Magma is still experimental, with the creator reporting challenges in achieving clean physical prints despite successful slicing.
- Successful implementation may require printers with precise extrusion control, direct drive extruders, and all-metal hotends.
- Magma offers a potentially low-cost, software-based solution to a long-standing FDM printing problem.
You know the feeling. You spend hours printing a part that looks perfect on the outside. Then you pick it up, put a little pressure on it, and snap. The break runs clean along a layer line. It’s a frustration every FDM user has faced. The layers that build your part are also its weakest point.
Now imagine a printer that could fill those weak spots as it goes. A clever hack called Magma does exactly that. It’s a modified version of the popular OrcaSlicer software. Instead of just laying down plastic layer by layer, it builds narrow vertical channels inside your part. Then, mid-print, it injects molten plastic into those channels. Think of it like filling a crack with glue, but with hot plastic that fuses everything together.
Is it ready for prime time? Not yet. But it’s a smart idea worth watching.
The Weakness of Layers: Why FDM Parts Fail
FDM, or fused deposition modeling, works by melting plastic filament and laying it down in thin lines, one on top of another. This builds objects layer by layer. It’s cheap, it’s accessible, and it works for all kinds of projects. But it has one big problem: the layers don’t bond together very tightly.
Think about a stack of paper. You can slide the sheets around easily. That’s what happens inside an FDM part on a microscopic level. Each layer is pressed onto the one below it, but the adhesion is only as strong as the plastic’s ability to melt and fuse. In injection molding, liquid plastic fills a mold all at once, so the whole part is one solid piece. FDM prints are like a stack of thin coins glued together.
Engineers call this Z-axis weakness. A part might be strong in the XY plane (the flat direction of the layers) but can snap easily along the Z axis (the vertical direction between layers). For functional parts, this is a dealbreaker. You can’t use a 3D-printed bracket to hold up a shelf if it might split along a layer line under load.
People have tried all sorts of fixes. Annealing parts in an oven to encourage recrystallization. Coating them with epoxy or cyanoacrylate. Using heated chambers to improve layer bonding during printing. Even continuous fiber printing, where carbon fiber or other materials are laid down alongside plastic to reinforce it. Each method has trade-offs. Some cost time. Some cost money. Some need extra equipment.
Magma takes a different approach. Instead of fixing the problem after printing, it addresses the weakness during the print itself. That’s what makes it interesting.
Meet Magma: A Slicer Hack That Adds Channels for Magma 3D printing Z-axis strength
Magma is not a new printer or a new filament. It’s a fork of OrcaSlicer, a popular open-source slicer program. A fork means someone took the existing code and changed it to do something new. The creator, a developer named MGunlogson on GitHub, added a special infill pattern to OrcaSlicer.
Infill is the internal structure of a 3D print. Most slicers offer infill patterns like grid, honeycomb, or gyroid. These save material and time while providing internal support. Magma’s infill is different. It’s a triangle-like shape that creates sealed vertical U-shaped channels running from the bottom of the part to the top. These channels are hollow and narrow, like straws embedded in the plastic.
Why triangle-like? The geometry matters. The channels need to be sturdy enough not to collapse during printing, but open enough for molten plastic to flow through later. A triangle shape distributes pressure well and leaves nice vertical gaps. It’s a simple, clever choice.
The slicer knows exactly where every channel is. It marks their positions in the G-code, the instructions the printer follows. That positioning is key for the next step.
How Magma Works: Injecting Plastic Mid-Print
Here’s where it gets clever. During a normal print, the nozzle lays down plastic in a straight line, moves to the next spot, and repeats. Magma changes this routine. At specific points, the printer pauses and the nozzle moves over one of the U-shaped channels. Then it extrudes a blob of molten plastic directly into that channel.
Think of it like using a caulk gun. The nozzle becomes a syringe filled with hot plastic. It pushes extra material into the channel, filling it up. The plastic then bonds to the walls of the channel all the way down. This creates a solid vertical pillar inside the part, fusing together every layer it touches. It’s like pouring glue down a tube that runs through a stack of pancakes. The tube becomes a solid rod that holds everything together.
The timing is critical. The injection has to happen while the lower layers are still warm enough to bond, but not so hot that the channel melts shut. Too early and the plastic oozes out. Too late and the bond might be weak. The slicer has to calculate the injection point based on print speed, layer height, and the temperature of the bed and nozzle.
Magma uses a simple rule: inject a set amount of plastic at each channel every few layers. The amount depends on the channel diameter and the desired fill. The creator is still tuning these numbers.
There’s another challenge. The injected plastic has to enter the channel cleanly. If the nozzle drips or oozes on the surface, it’ll mess up the outer finish. The slicer tries to compensate by retracting filament before and after injection. But this is not easy to get right.
Experimental Status: Slicing Works, Printing Is Tricky
Let’s be clear: Magma is not a finished product. As the creator puts it, “It works in the slicer. I have not gotten a clean physical print yet.”
That’s an honest admission. The software can generate the correct G-code. The channels show up in preview. The injection commands are there. But when MGunlogson tried to actually print the part, things didn’t go perfectly. Plastic leaked. The channels collapsed. The injection timing was off.
This is normal for early experiments. Hardware limits play a big role. The creator is using a relatively standard printer, likely a Creality or Prusa-style machine. These printers are fine for normal prints, but they lack the precision and speed control needed for mid-print injection. A tiny ooze can ruin a print. A clog can stop it entirely.
That’s why the project is open for testers. MGunlogson is asking for help from people with better hardware. Specifically, printers with a direct drive extruder, all-metal hotend, and maybe a heated chamber. These features give better control over extrusion and reduce oozing. A direct drive extruder pushes filament right at the nozzle, which allows precise retraction. An all-metal hotend handles higher temperatures without burning plastic. A heated chamber keeps the entire print warm, improving layer adhesion and making injection bonds stronger.
If you have a printer like a Bambu Lab X1 Carbon, a Voron 2.4, or a heavily modified Prusa MK4, you might be the perfect tester. The project’s GitHub page has instructions on how to build the modified OrcaSlicer and run your own tests.
Hardware Requirements for Magma 3D Printing
Let’s talk about what a printer needs to run Magma successfully.
First, precise extrusion control is essential. The injection step calls for a small, fast blob of plastic. If the extruder can’t respond quickly, the blob will be too big or too small. A Bowden setup, where the filament is pushed through a long tube, is likely too slow. A direct drive extruder, with the motor mounted right above the nozzle, gives much better control.
Second, an all-metal hotend helps. Many stock hotends have a PTFE liner inside. This liner can’t handle high temperatures well. The injection step might push temperatures higher to get the plastic to flow freely. An all-metal hotend avoids this limit and allows consistent extrusion.
Third, a heated chamber is a big advantage. If the whole print is warm, the channels stay flexible. They don’t cool down too fast. The injected plastic bonds better. Many high-end printers already have enclosures. You can also buy or build an enclosure for an open-frame printer.
Fourth, the printer needs a reliable Z-offset and first layer. If the first layer is not perfect, the channels might not seal at the bottom. Then injected plastic just oozes out onto the print bed. That’s a mess.
Finally, patience. This is an experiment. Even the best printer will require tuning. The slicer settings need to be adjusted for channel size, injection frequency, and retraction distances. Expect failed prints.
Comparing Magma to Other Z-Strength Fixes
Magma is not the only way to fix Z-axis weakness. Let’s look at how it stacks up against other methods.
Annealing: You can put printed parts in an oven at a controlled temperature (around 80-120 degrees Celsius for PLA, higher for PETG or nylon). This encourages the plastic molecules to rearrange and form stronger bonds between layers. It works, but it changes the part dimensions slightly. It also takes hours and requires a stable oven. Magma is faster and doesn’t shrink the part.
Chemical smoothing: For plastics like ABS, you can expose the part to acetone vapor. The acetone melts the surface slightly, fusing layers together. It makes parts stronger and smoother. But it only works for certain plastics and is hard to control. Magma works with any FDM filament.
Epoxy or resin coating: You can brush or dip a print in epoxy. This creates a hard shell that reinforces the outer layers. But the interior remains weak. Magma strengthens the whole part, not just the surface.
Continuous fiber printing: Companies like Markforged and Anisoprint embed carbon fiber or glass fiber into plastic during printing. The fibers run through the part, giving incredible strength. It’s the gold standard for strength, but it requires expensive printers and special filament. A spool of carbon fiber filament can cost over $100. Magma uses standard filament and any printer that can handle it. It’s much cheaper.
Heated chambers: Keeping the print chamber warm (around 50-80 degrees Celsius) improves layer adhesion. Many enclosure kits exist. This is a simple upgrade that helps every print. But it doesn’t eliminate Z weakness entirely. Magma attacks the problem directly rather than just improving the base adhesion.
No single fix is perfect. Magma’s strength is that it’s a software modification, not a hardware addition. If it works, anyone with a decent printer could download the modified slicer and start printing stronger parts. That’s a big deal for the hobbyist community.
What’s Next for Magma: Open Testing and Community Feedback
Magma is moving into the open testing phase. The creator wants feedback from the community. If you have a printer that can handle the demands, you can try it yourself.
Here’s what to expect. You’ll download the modified OrcaSlicer from the GitHub repository. You’ll load a 3D model and select the Magma infill pattern. The slicer will generate G-code with injection commands. You’ll start the print and watch closely.
It might work. It might not. The first few attempts will likely fail. But each failure gives data. That data helps improve the technique.
The project is hosted at https://mgunlogson.github.io/magma/. Bug reports go to the Magma fork’s issue tracker, not the upstream OrcaSlicer repo. The creator is active on GitHub and responds to questions.
For makers and engineers, this is exciting. It’s a low-cost, open-source attempt to solve one of the biggest problems in desktop 3D printing. If Magma proves reliable, it could change how people think about FDM parts. Functional prints that don’t break along layer lines. That’s the dream.
Of course, there are many unknowns. Will the channels collapse under pressure? Will the injected plastic bond evenly all the way down? Will the process be consistent across different printers and materials? Only testing will tell.
The 3D printing community thrives on experiments like this. One person’s clever idea becomes a shared tool through open-source development. Magma is a perfect example. A simple fix for a persistent problem.
So if you’ve ever broken a 3D-printed part along a layer line, keep an eye on this project. It might be the solution you’ve been waiting for.
Frequently Asked Questions
What is the main problem Magma aims to solve in 3D printing?
Magma aims to solve the Z-axis weakness in FDM 3D printing. This weakness causes parts to break easily along layer lines, limiting their use for functional applications.
How does Magma work?
Magma modifies the slicing process to create internal U-shaped channels within a 3D model. During printing, the machine pauses and injects molten plastic into these channels, fusing the layers together and creating a stronger internal structure.
Is Magma a new 3D printer or material?
No, Magma is not a new printer or filament. It is a modified version, or 'fork,' of the OrcaSlicer software. It uses standard 3D printing filaments.
Is Magma ready for general use?
No, Magma is still in the experimental phase. While the slicing software works, the creator has not yet achieved a perfect physical print, indicating challenges with the printing process itself.
What kind of hardware is needed to test Magma?
Testing Magma effectively may require printers with precise extrusion control, such as those with a direct drive extruder and an all-metal hotend. A heated chamber can also be beneficial.
How does Magma compare to other methods for improving Z-axis strength?
Unlike annealing or chemical smoothing which are post-processing steps, Magma addresses Z-axis weakness during the print itself. It's also more accessible than expensive continuous fiber printing methods.
