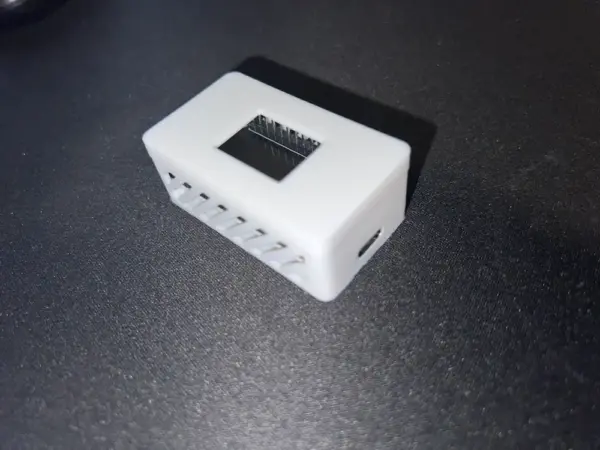

A 3D printed enclosure designed for the ESP32 microcontroller, featuring a convenient USB-C port and a mounted DHT22 (AM2302) temperature and humidity sensor. (Illustrative AI-generated image).
At a Glance
Generic enclosures often lead to inaccurate temperature and humidity readings from ESP32 DHT22 sensors due to poor airflow and heat buildup. A custom 3D-printed ESP32 DHT22 case, like the one designed by Ecki_0208, provides essential features such as a dedicated sensor cutout, a crucial airflow opening, and convenient USB-C access, ensuring reliable environmental data for your IoT projects.
- Generic enclosures can cause inaccurate temperature and humidity readings by trapping heat from the ESP32 and restricting airflow to the DHT22 sensor.
- A custom 3D-printed ESP32 DHT22 case with a dedicated sensor cutout and a rectangular airflow opening ensures the sensor gets accurate ambient air readings.
- Key design features include USB-C port access, cutouts for reset and boot buttons, and a flush sensor mount for protection and exposure.
- When printing, use PLA filament and avoid materials that outgas volatile organic compounds (VOCs), which can interfere with humidity measurements.
- Proper assembly involves ensuring the sensor is flush with the outside, using short wires, and including a pull-up resistor if necessary for stable data transmission.
- Testing and calibration are crucial; allow the sensor time to acclimate and compare readings to a reference, adjusting code if needed for higher accuracy.
You know the feeling. You wire up an ESP32 with a DHT22 sensor, upload your code, and check the serial monitor. The temperature reads 32°C when the room is clearly 24°C. The humidity is stuck at 99%. Chances are, you stuffed the board and sensor into a generic enclosure with no airflow. The sensor is suffocating, reading the heat from the ESP32’s processor, not the room air.
There’s a simple fix: a custom 3D-printed enclosure designed specifically for the ESP32 and DHT22. Maker Ecki_0208 shared a clever design on MakerWorld that solves these problems. It gives you USB-C access, cutouts for the reset and boot buttons, and most importantly, a rectangular airflow opening above the sensor for accurate readings. Let me walk you through why this case matters, how it’s designed, how to print it, and how to set it up for your next IoT project.
Why This ESP32 DHT22 Case Matters: The Problem with Generic Enclosures
Most off-the-shelf plastic boxes are made for protecting electronics from dust and water, not for sensors. The DHT22 (also called the AM2302) uses a capacitive humidity sensor and a thermistor. To get accurate readings, the sensor needs good contact with the surrounding air. If you seal it inside a box, the air inside gets warm from the ESP32’s heat, and the humidity reading will be wrong.
Many DIY enclosures have common mistakes: no ventilation at all, tiny holes that don’t allow air circulation, or the sensor mounted inside the box next to a hot voltage regulator. Ecki_0208’s design addresses all these issues. The case has a dedicated cutout that lets the DHT22 sit flush with the outside, with a rectangular opening that allows air to flow across it freely. The ESP32 sits inside, separated from the sensor by the case wall, minimizing heat interference.
This is not a breakthrough. It’s just good design. But it makes a huge difference in practice. If you want reliable temperature and humidity data for your smart home or IoT project, this case is a solid foundation.
Design Features: Cutouts, Airflow, and USB-C Access
Let’s look at what this case includes. The design is simple but well thought out. Key features include:
- USB-C port cutout. A precise opening for the USB-C connector, allowing power or programming without opening the case.
- Reset and boot button cutouts. Openings on the underside for easy access to these buttons without removing the lid.
- DHT22 sensor cutout. A cutout on the top where the sensor sits, held in place by the case walls without glue or screws.
- Rectangular airflow opening. A slot above the sensor that creates a chimney effect, allowing air to flow over the sensing elements even in still conditions.
- Fit for ESP32 boards with USB-C. Designed for newer ESP32 development boards that use USB-C. Check your board’s dimensions before printing.
Compared to other DIY enclosures, this one stands out because of the airflow opening. While many people just cut a round hole for the sensor, a rectangular slot provides better airflow and looks clean. If you are using a different sensor like the BME280 or SHT30, you can edit the STL file to match your sensor’s dimensions while keeping the basic case structure.
Printing the ESP32 DHT22 Case: Tips for Success
Printing this case is straightforward with a basic FDM 3D printer. Here are some tips:
Filament choice. PLA is fine for indoor use. It is easy to print and stable. Avoid filaments that outgas volatile organic compounds (VOCs), such as ABS, which can confuse the DHT22’s humidity sensor. Stick with PLA or PETG for more heat resistance.
Print settings. Use a layer height of 0.2 mm with a 0.4 mm nozzle. No supports are needed. Print the case with the top side facing up for clean overhangs. Use 15-20% infill with a grid or gyroid pattern. Set a heated bed at 60°C and use glue stick or painter’s tape for adhesion.
Post-processing. After printing, check the USB-C cutout and sensor cutout for rough edges. Use a small file or craft knife to clean them up. Test fit the sensor before wiring.
Assembly and Wiring: Fitting the ESP32 and Sensor
Once the case is printed, follow these steps:
- Prepare the DHT22 sensor. Solder wires to VCC, DATA, and GND pins. Keep wires short (10-15 cm) to reduce noise.
- Insert the sensor. Slide it into the cutout from the inside, ensuring it is flush with the outside surface.
- Place the ESP32. Insert the board so the USB-C port aligns with its cutout and the buttons align with the underside openings.
- Connect wires. Wire DHT22 VCC to ESP32 3.3V, GND to GND, and DATA to a GPIO pin (e.g., GPIO 4).
- Add a pull-up resistor. If your sensor doesn’t have one built in, add a 10k ohm resistor between DATA and VCC.
- Close the case. Use snap-fit or screws, ensuring wires are not pinched.
Common mistakes to avoid: Don’t place the sensor too deep into the cutout. Don’t use long wires. Don’t forget the pull-up resistor. Check if your DHT22 works at 3.3V or 5V.
Testing and Calibration: Ensuring Accurate Readings
After assembly, upload a simple sketch to read the DHT22. Use the Adafruit DHT sensor library. Allow the sensor 10-15 minutes to acclimate before checking readings. If the temperature is 2-5°C higher than room temperature, the ESP32’s heat may be affecting the sensor. Ensure the airflow opening is clear and the sensor is correctly oriented.
Check humidity accuracy against a reference. If readings are off, ensure the filament doesn’t absorb moisture. For higher precision, calibrate by comparing to a known reference and adjusting your code with an offset.
For long-term use, monitor for drift. In dusty environments, consider adding a fine mesh filter over the airflow opening.
Real-World Use Cases: Smart Home and IoT Monitoring
This case is built for DIY IoT and smart-home monitoring. Use it for room temperature and humidity monitoring with Home Assistant or MQTT, greenhouse or terrarium tracking, or as part of a larger weather station. It can also help with energy efficiency monitoring by identifying drafts or areas needing insulation.
Frequently Asked Questions
Why do generic enclosures cause inaccurate readings with ESP32 DHT22 sensors?
Generic enclosures often lack proper ventilation, trapping heat from the ESP32 and restricting airflow to the DHT22 sensor. This leads to temperature readings skewed by the board’s heat and humidity readings that are inaccurate due to stagnant air. A dedicated cutout and airflow opening, as in Ecki_0208’s design, solve this by exposing the sensor to ambient air.
What filament should I use for printing the case?
Use PLA filament for indoor use. It is easy to print and does not outgas significant VOCs that can interfere with humidity readings. Avoid ABS, ASA, and nylon, which can release VOCs and affect sensor accuracy. PETG is a good alternative if you need more heat resistance.
How do I ensure the sensor is mounted correctly?
Insert the DHT22 into the cutout from inside the case so that the sensing elements face outward through the rectangular airflow opening. The sensor should be flush with the outside surface. Do not push it too far in, as it needs exposure to the room air for accurate readings.
Do I need a pull-up resistor for the DHT22?
Yes, if your DHT22 is a bare component without a built-in resistor. Add a 10k ohm resistor between the DATA and VCC pins to ensure stable data transmission. Many modules include one, so check your sensor’s specifications.
How can I calibrate the DHT22 for higher accuracy?
Place the sensor and a calibrated reference (thermometer and hygrometer) in the same spot for 30 minutes. Note the difference in readings. Then adjust your code to add or subtract the offset. For most DIY projects, the DHT22 is accurate enough out of the box (±2% humidity, ±0.5°C).
